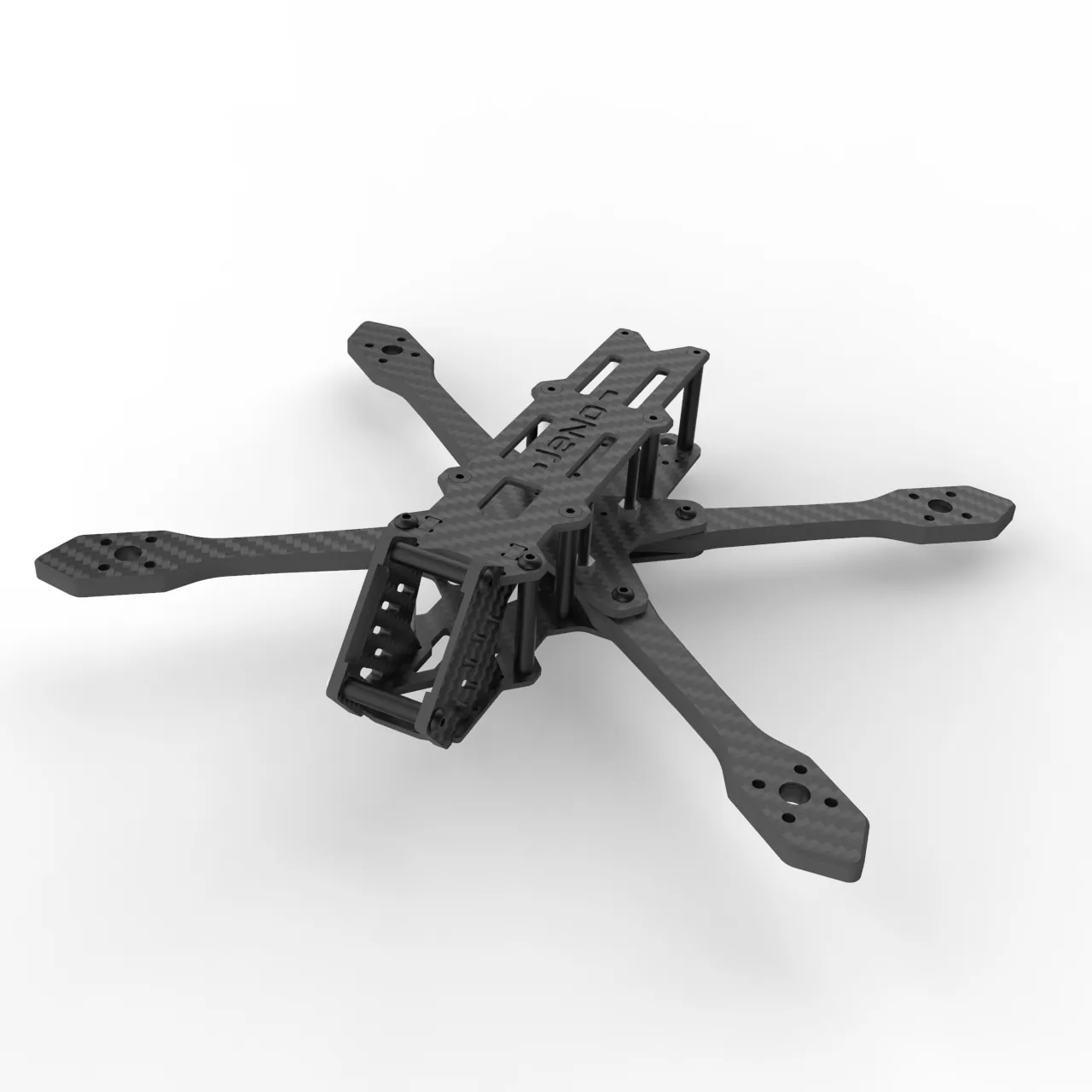

JeNo 5.1″ V1.5.1 Bando
La version indestructible. Bottom plate 3 mm, bras 6 mm renforcés sans trous, pare-chocs intégraux, carénages moteurs. Pensé pour le freestyle agressif et les sessions bando où chaque crash compte.
Le frame qui encaisse
La version Bando du JeNo 5.1 n'est pas juste un remix cosmétique. Bottom plate épaissie à 3 mm (vs 2.5 mm en Classic), bras Bando sans trous pour gagner en rigidité, pare-chocs avant et arrière en TPU intégrés, et carénages moteurs détachables. Conçue pour les pilotes qui volent là où les autres hésitent.
Conçu par WE are FPV
Open-source community · Designed in FranceTrois univers, un châssis
Bando / Crashers
Sessions abandonnées, enfilades, tree-walks. Le 3 mm encaisse, les pare-chocs absorbent, tu repars.
Freestyle agressif
Dips, powerloops, rolls à basse altitude. Rigidité maximale pour propulsion 6S sans flex parasite.
Long range 6S
Passage XT60 dédié, batterie 1000 mAh+ supportée, poids maîtrisé pour 20+ minutes de cruising.
Positionnement dans la gamme JeNo 5.1
| Variante | Bottom | Arms | Poids | Usage |
|---|---|---|---|---|
| Bando (cette page) | 3 mm | 6 mm sans trous | 140-145 g | Crash-proof, freestyle agressif |
| Classic | 2.5 mm | 6 mm Classic | 125-135 g | Freestyle polyvalent |
| Light | 2.5 mm | Light | ~120 g | Ultra-léger, race |
| Cinematic | 2.5 mm | Allongés | 130-140 g | 0 hélice visible, stabilisé |
Disponible avec plusieurs options de cam plate : Classic (freestyle), Lightweight, Cinematic, ou High-Tilt 40° pour le long range.
Spécifications techniques
| Taille hélices | 5.1" (option 6") |
| Géométrie | Wide-X, cam cage inclinable |
| Bottom plate | 3 mm (Bando) |
| Middle plate | 2.5 mm |
| Top plate | 2 mm |
| Arms | 6 mm, Bando (sans trous) |
| Body height | 30 mm |
| Stack height | 21.5 mm |
| Montage moteurs | 16×16 mm / 19×19 mm |
| Moteurs recommandés | 2205-2207 · 1900-2750 KV |
| Batterie | 4S 850-1300 mAh / 6S 650-1100 mAh |
| Passage batterie | XT60 avant + arrière + sangle |
| Cam mounting | DJI 20 mm · Micro · Nano |
| Cam tilt | 0° → 40° réglable |
| Version design | v1.5.1 (support O4 Pro) |
Pièces TPU disponibles
Kit TPU Bando complet (fichiers STL fournis, à imprimer) :
- •Pare-chocs avant / arrière
- •Carénages moteurs détachables
- •Supports antennes VTX (Bando)
- •Protection bras Modus / Rabbit
- •Mounts action cam (DJI Action 2, GoPro, Osmo Nano)
- •Softmount caméra (cinematic)
STL téléchargeables sur Printables. On peut aussi les imprimer sur-mesure (voir section Impression 3D).
Ressources
Projet open-source documenté. Fichiers carbone, PDF montage, reviews vidéo :
The indestructible version. 3mm bottom plate, 6mm reinforced arms without lightening holes, integrated bumpers, motor guards. Built for aggressive freestyle and bando sessions where every crash counts.
The frame that takes the hits
The Bando version of the JeNo 5.1 is not just a cosmetic remix. Thickened bottom plate at 3mm (vs 2.5mm on Classic), Bando arms without lightening holes for added rigidity, front and rear TPU bumpers included, and detachable motor guards. Built for pilots who fly where others hesitate.
Designed by WE are FPV
Open-source community · Designed in FranceThree worlds, one frame
Bando / Crashers
Abandoned sessions, gap runs, tree-walks. The 3mm plate takes the hit, the bumpers absorb, you fly on.
Aggressive freestyle
Dips, powerloops, low-altitude rolls. Maximum rigidity for 6S propulsion with no unwanted flex.
6S long range
Dedicated XT60 routing, 1000 mAh+ battery support, weight managed for 20+ minutes of cruising.
Position within the JeNo 5.1 lineup
| Variant | Bottom | Arms | Weight | Usage |
|---|---|---|---|---|
| Bando (this page) | 3 mm | 6 mm no holes | 140-145 g | Crash-proof, aggressive freestyle |
| Classic | 2.5 mm | 6 mm Classic | 125-135 g | All-round freestyle |
| Light | 2.5 mm | Light | ~120 g | Ultra-light, race |
| Cinematic | 2.5 mm | Extended | 130-140 g | 0 prop visible, stabilized |
Available with multiple cam plate options: Classic (freestyle), Lightweight, Cinematic, or High-Tilt 40° for long range.
Technical specifications
| Prop size | 5.1" (6" option) |
| Geometry | Wide-X, tiltable cam cage |
| Bottom plate | 3 mm (Bando) |
| Middle plate | 2.5 mm |
| Top plate | 2 mm |
| Arms | 6 mm, Bando (no holes) |
| Body height | 30 mm |
| Stack height | 21.5 mm |
| Motor mounting | 16×16 mm / 19×19 mm |
| Recommended motors | 2205-2207 · 1900-2750 KV |
| Battery | 4S 850-1300 mAh / 6S 650-1100 mAh |
| Battery routing | XT60 front + rear + strap |
| Cam mounting | DJI 20 mm · Micro · Nano |
| Cam tilt | 0° → 40° adjustable |
| Design version | v1.5.1 (O4 Pro support) |
Available TPU parts
Complete Bando TPU kit (STL files provided, to print):
- •Front / rear bumpers
- •Detachable motor guards
- •VTX antenna mounts (Bando)
- •Arm protectors Modus / Rabbit
- •Action cam mounts (DJI Action 2, GoPro, Osmo Nano)
- •Camera softmount (cinematic)
STL files downloadable from Printables. We can also print them custom for you (see 3D Printing section).
Resources
Documented open-source project. Carbon files, assembly PDF, video reviews:
